Refractory Ceramic Fiber Insulation Blanket Board 1260 1360 1400c 1600 1800 Degree

Rating:
Get Quotation
X

Contact Seller

Density (kg/m3): 300-600 Classification Temperature (°C): 1600-1800
Linear Shrinkage After Heating(%): 1500°C*24h<2 Al2O3,%: 63.5-75
Al2O3+SiO2,%: 99



Refractory Ceramic Fiber Insulation Blanket Board 1260 1360 1400c 1600 1800 Degree

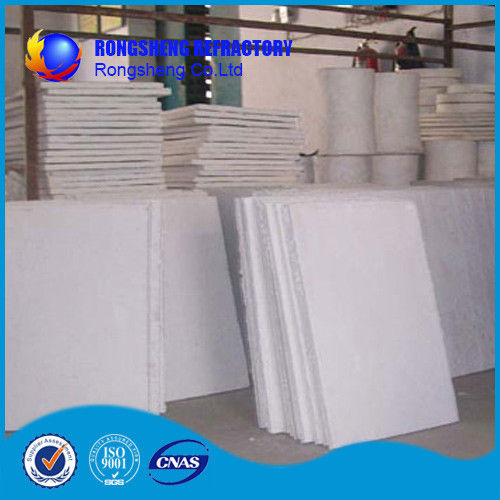

Ultra high temperature board and vacuum shaped products is a high temperature insulation

materials are made by different fire-resistant fibers, non-organic and few organic adhesive mixed in

different percentages. Which performs with exceptional stability at high temperatures with its

polycrystalline mullite fiber content, it has a high rupture and compressive strength at room

temperature. The application temperature of these products can be varied from 1500°C to 1800°C.



Applications:

· Door of furnaces and Kilns

· The equipment heating insulation and electrical insulation materials

· Glass and enamel

· High-temperature insulation

· Various high-temperature furnaces lining ladle permanent layer,tunnel kilns, roller kilns



Standard Sizes:



length × width:

600 × 400 or 1000 × 500 or 1000 × 600 (mm)

thickness:10 -150 (mm)

Other sizes are available as clients’ requests.



SPECIFICATIONS:



Description RS-1600 RS-1800
Density (kg/m3) 300-600 300-600
Classification Temperature (°C) 1600 1800
Linear Shrinkage after Heating(%) 1500°C*24h<2 1500°C*24h<2.5






Chemical composition
%







Al2O3 63.5 75
Al2O3+SiO2 >99 >99.5
ZrO2 / /
