Parameters
-
Comments
| Shape: | Brick | Material: | Alumina Cement |
|---|---|---|---|
| Al2O3 Content (%): | 70% | Cold Crushing Strength (MPa): | 90 |
| Apparent Porosity: | 18 | Size: | Customized |
Fireproof Insulation Mullite Brick Standard Size For Heating Plant Chimney
Characteristics Of Mullite and Corundum Mullite Bricks:
The high quality synthetic mullite, high purity corundum as the main raw material,adding special additive, via high pressure molding, the high temperature burn becomes , the product has soft, high porosity Hollywood,low thermal shock performance is good, wear-resisting performance is good wait for a characteristic.Can be widely used in steel, no-ferrous metal smelting furnace,bolier and wastes incinerator.
Applications For High Alumina Refractory Brick :
1. Steel furnaces
2. Ceramic tunnel kiln,glass kiln
3. Iron making furnaces,. cement kiln
Physical And Chemical Indicators For Mullite and corundum mullite Brick:
|
Brand Item |
JM23 | JM26 | JM28 | JM30 | |
| Max Temperature ( C) | 1260 | 1460 | 1540 | 1700 | |
| Bulk Density (g/cm3) | 0.55-0.60 | 0.8 | 0.89 | 1.03 | |
| Cold Crushing Strength (Mpa) | 1.2 | 1.6 | 2.1 | 2.5 | |
| Modulus of Rupture (Mpa) | 0.9 | 1.4 | 1.6 | 2.1 | |
|
Reheating Linear Change (%) CT -30 °CX 8H |
1230 °C -0.5 |
1400 °C -0.5 |
1510 °C -0.5 |
1620 °C -0.9 |
|
|
Thermal Expansion 1100 °C( % ) |
0.5 |
0.7 |
0.8 |
0.8 |
|
| Thermal conductivity (W/m.k ) | 400 °C | 0.14 | 0.27 | 0.32 | 0.41 |
| 600 °C | 0.16 | 0.29 | 0.34 | 0.43 | |
| 800 °C | 0.18 | 0.31 | 0.36 | 0.44 | |
| 1000 °C | 0.20 | 0.33 | 0.38 | 0.45 | |
| Al2O3 % | 37 | 50 | 64 | 72 | |
| Fe2O3 % | 1.0 | 1.0 | 1.0 | 0.5 | |

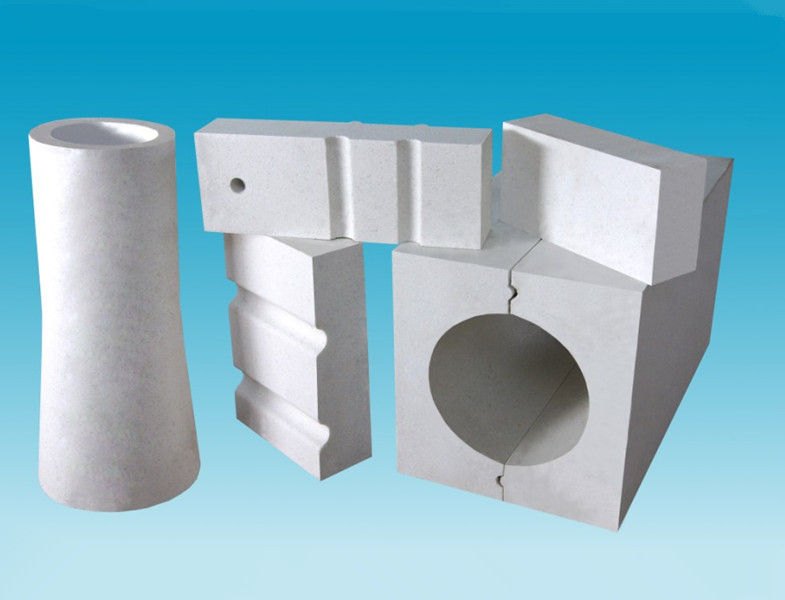

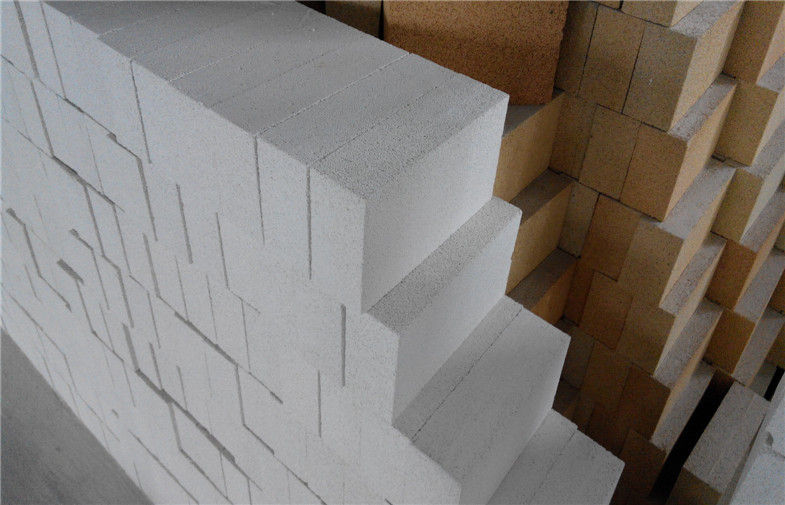

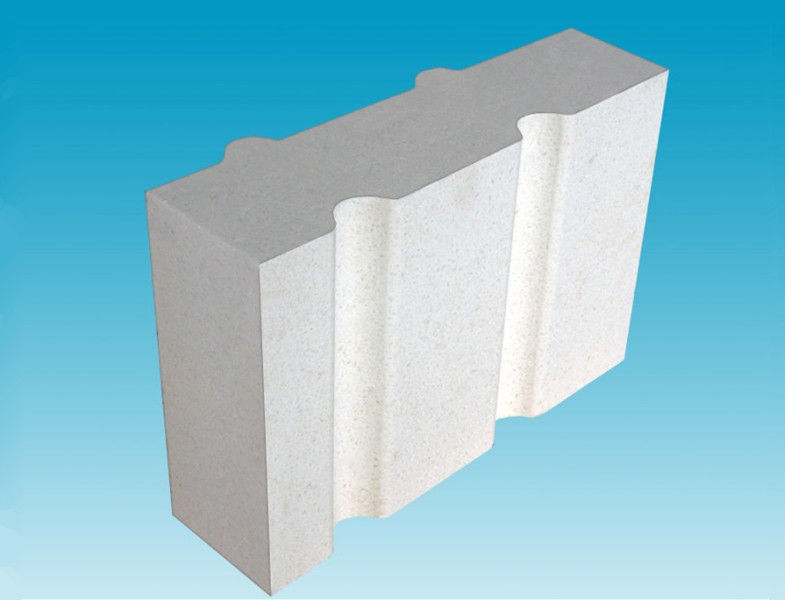

Product Photos For Different Type:

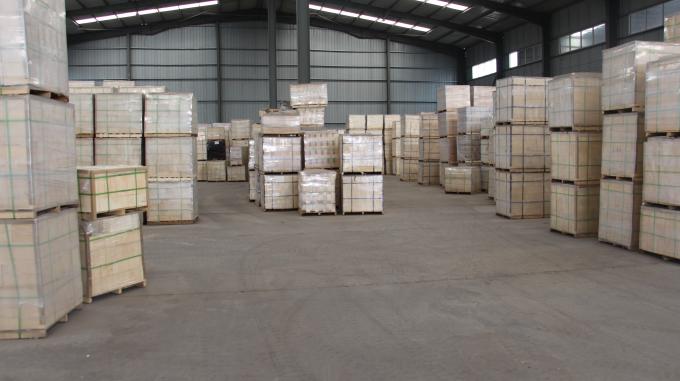

Packaging & Shipping:
The bricks are packed on wooden pallet with papers in each layer and PP film wrapped outside of the whole pallet.
Company Information:
Zhengzhou Rongsheng Refractory Material Co., Ltd. is located in the hinterland of Central Plains, at the foot of Songshan Mountain, and adjacent to Zhengshao Highway, Longhai and Jingguang railways. The convenient transportation, abundant resources and high quality minerals provide favorable conditions for the production of refractory materials.
Established in the early nineties of twenty century, with continuous innovation and development, now it is a comprehensive enterprise in refractory material sindutry, covering metallurgy, building materials, electric power, chemical industry etc.
Our main products: refractory material for industrial furnaces, such as high-alumina brick, clay brick, silicon brick, high-strength diatomite brick, light weight insulation brick, low iron mullite brick, etc;anti-stripping alumina brick,alkali proof brick,phosphate brick for cement industry; For the industrial furnace and power boiler, we can provide various series of abrasive bricks,corundum brick, mullite brick, wear resistant castable, corundum castable , high strength low cement castable, impervious material,plastick refractory, etc. Our products are popular in the whole country and have been exported to India, Iran.etc.
Rong Sheng company adhering to the " integrity,innovation, hard work" and business philosophy,the " people-oriented" as the cornerstone of enterprise development, to " the pursuit of excellence" as the core values of the enterprise, will create " Rongsheng Brand" as a corporate strategic objectives.and product types rich scientific management processes, improve customer information management system, timely, efficient, to provide satisfactory service to our users.
FAQ:
1. Are you a manufacture or trading company ?
Factory+ trade(mainly factories, at the same time, we operates other related products)
2. Can we visit your factory ?
Sure,welcome at any time, seeing is believing.
3. Is your company accept customization ?
We have own factory and excellent technical team, and we accept OEM service
4. What’s the MOQ of trial order ?
No limit, we can offer the best suggestions and solutions according to your condition.
5. Will your company supply samples ?
Yes, we do. The shipping charges should be undertaken by customer.
